KRIZEL SHAFT mounted speed reducers are excellent quality control products and manufactured with excellent precision KRIZEL SMSR are very compact in design, totally enclosed designed for direct mounting on the drive shaft at the driven equipments. The direct mounting principle ensure positive and permanent alignment of the speed reduce and minimizing space requirement and layout problems. It also eliminates the foundations.
All Gears are of high grade alloy steel for higher efficiency.
Hardened and ground helical gear train.
Torque arm, hub covers and puller ring supplied as standard accessories.
Severe duty grease purged seals on high speed shaft prevent leakage and subsequent drive failure.
Long gear and bearing lifetime due to heavier design.
All mounting positions possible.
Easy to mount, Space saving, Low noise level
KRIZEL SHAFT mounts are widely used in quarry and crushing plants, conveyor systems, asphalt plants, road construction machinery, special purpose machines, bakery machines, cement and mining industries etc.

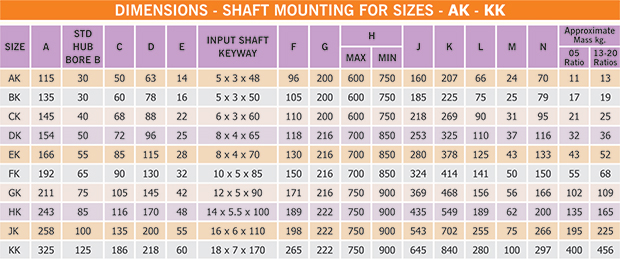

Model: Available in different sizes from AK to KK.
Ratios:Available in three ratios of 5:1 , 13:1 & 20:1
Power: Higher power rating for maximum torque from 0.25 kw to 100 kw.
Mounts:Vertical, horizontal and direct drive mounting configurations.
Lubrication: Oil splash type lubrication.
Housing: Cast iron case construction.
KRIZEL SHAFT mounted speed reducers are metric in design to meet any position requirements and satisfy a wide range of output speeds and horse power.

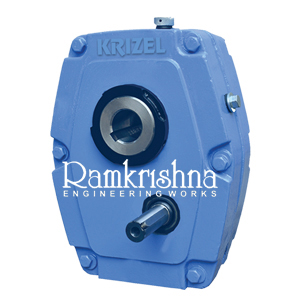

SMSR Gear Box

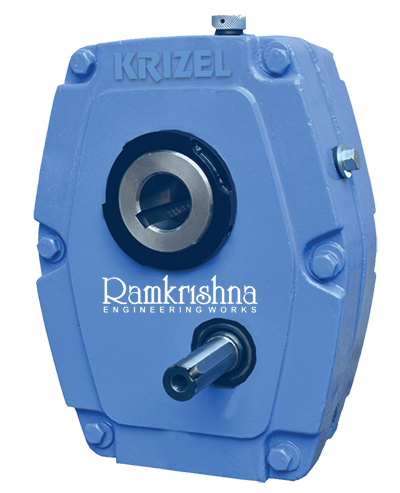

SMSR Gear Box

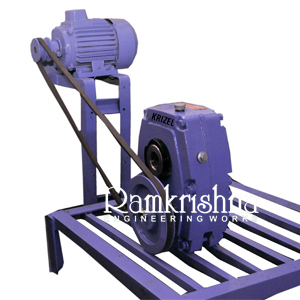

SMSR Gear Box
